Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Struktur: | Simplex | warna kabel: | Kuning |
|---|---|---|---|
| out Jacket: | LSZH | Diameter: | 3.0mm |
| Menyoroti: | sc kabel patch serat,kabel patch serat |
||

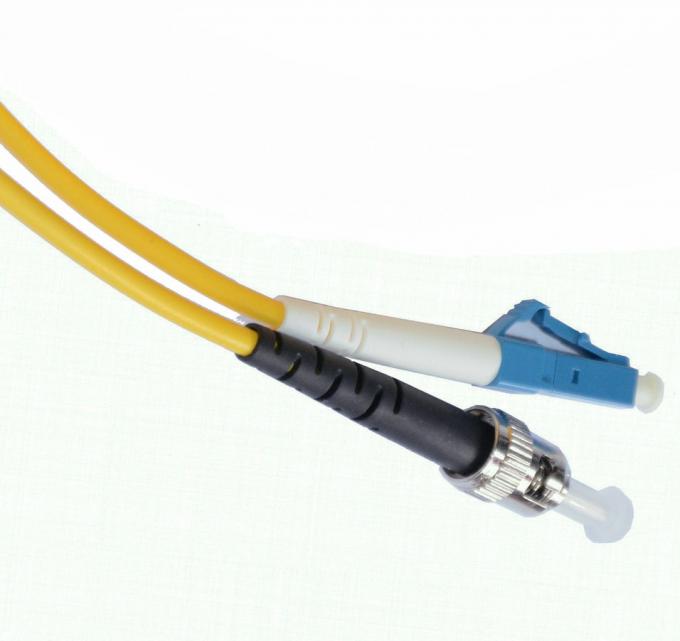

LC / UPC-ST / UPC SM SX 3.0mm croning Kabel patch optik, LSZH keluar jaket dengan sertifikasi ROHS
Bahan kabel patch:
Aplikasi:
| Parameter | Satuan | FC, SC, LC / kabel patch serat berlapis baja | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Kerugian penyisipan (khas) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Mengembalikan kerugian | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Beroperasi panjang gelombang | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Dapat ditukarkan | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Getaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Suhu Operasional | ° C | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | ||||||||
| Suhu penyimpanan | ° C | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | ||||||||
| Diameter kabel | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Informasi pemesanan:
♦ Jenis: SX / DX opsional
♦ Wajah akhir Ferrule: APC / UPC / PC
♦ Diameter: 0.9, 2.0, 3.0mm
♦ Panjang: 1m, 2m, 3m hingga 120m
♦ Serat: SM / OM1 / OM2 / OM3 / OM4
♦ Bahan jaket: PVC / LSZH / OFNR
