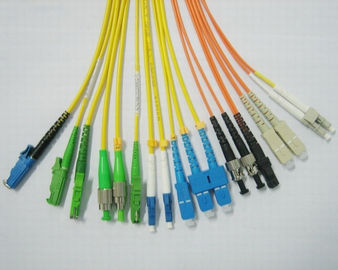

Kredibilitas Tinggi dan Stabilitas Fiber Optic Patch Cord untuk FTTH, CATV, LAN
Kabel Fiber Optic Patch
1. kekuatan tarik tinggi, fleksibel
2. presisi Tinggi ferrule keramik
3. kualitas tinggi tes 100% dipoles
Kabel Fiber Optic Patch

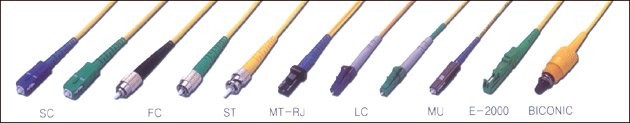

1.FC SC LC ST MTRJ SMA E2000 D4 MPO / MTP
2.Singlemode & Multimode (SM / MM)
3.PC & APC
4. Panjang (Opsional)
Aplikasi:
Spesifikasi:
Parameter | Satuan | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Kerugian penyisipan (khas) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Mengembalikan kerugian | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Beroperasi panjang gelombang | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
Dapat ditukarkan | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Getaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Suhu Operasional | ℃ | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | ||||||||
Suhu penyimpanan | ℃ | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | ||||||||
Diameter kabel | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Meminta informasi:
SC / UPC – SC / UPC-SM- DX- Φ 2.0–1M
① ② - ① ② ③ ④ ⑤ ⑥
① Jenis konektor: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Tipe Inti: Single-mode (SM: 9 / 125um), Multimode (MM: 50 / 125um atau 62.5 / 125um)
④ Kuantitas Kabel: "DX" berarti Duplex / "SX" berarti Simplex
⑤ Diameter Kabel: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Panjang Kabel: 1, 2, 3 meter atau disesuaikan
⑦ Jenis kabel: PVC, LSZH, OM3, OFNR, OFNP
