Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Fiber qty: | 48 core / 72 core | Patch penal: | 12*4 port / 24*3 port |
|---|---|---|---|
| Height: | 1U | Material: | Cold Rolled Steel / ABS Plastic |
| Color: | Black | Application: | Network, Telecommunications |
| Adapter Type: | SC Simplex / LC Duplex / LC Quad | Aadpter color: | Beige / Blue / Green /Auqa / purple |
| Menyoroti: | 1U Fiber Cassette Module,19'' Fiber Cassette Module,1U Cassette Module |
||

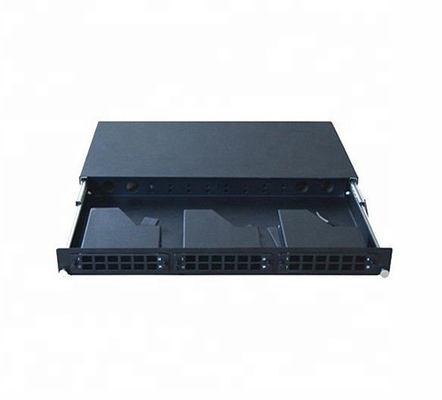

19'' Rack Mount Patch Panel 1U Fiber Cassette Module

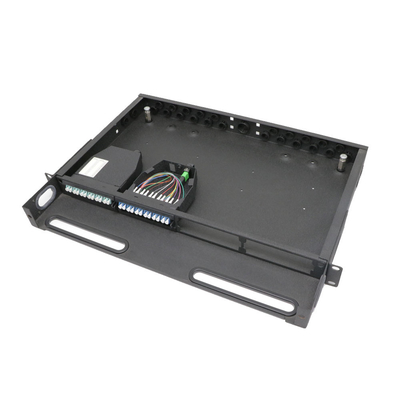

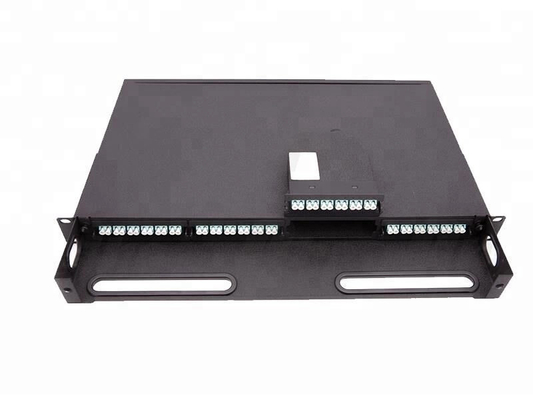

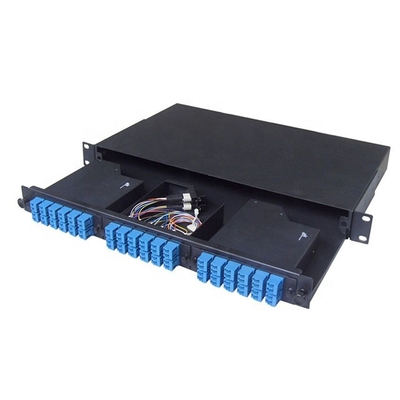

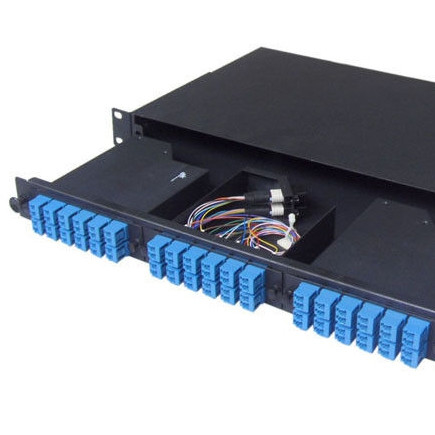

1U 19'' rack mount 48 72F Sliding Fiber patch panel with MTP/MPO Cassette module
This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.

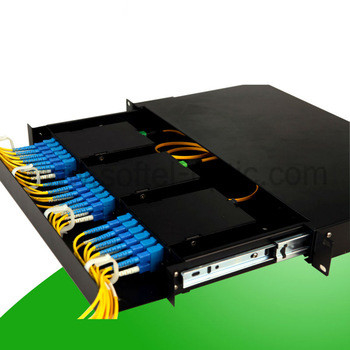

MTP/MPO Patch Panel can be installed 3 MPO cassettes in a 19" arrangement taking only 1U height. The Patch Panel has a sliding tray to provide easy access, connection and securing of the MPO/MTP Trunk Cables to the rear of the cassettes.The 19" mounting brackets are adjustable to allow the panel to be set further back in the cabinet mounting frames.
Made by cold roll steel, electrostatic powder spraying.
Fixed type, with PC material front transparent cover, convenient for observation and maintenance.
Its cover is easy to open and close by using button.
Back side with 2 oval port 22*60mm for cable entry.
Load max. 4pcs MTP/MPO cassette (Model: MB-M015).

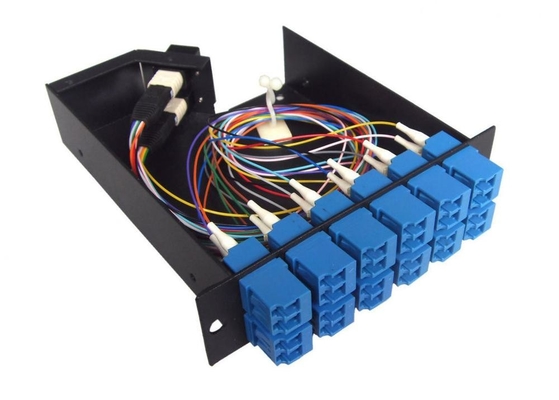

Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.
The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance.
4. Technical Parameter
Material thickness:1.2mm
5. Parameter:
| S/N | Description |
| MPOP-1U | MPO Sliding Panel, 1U Rack mount, for 3 cassette modules |
| MPOP-2U | MPO Sliding Panel, 1U Rack mount, for 6 cassette modules |
| MPOP-4U | MPO Sliding Panel, 1U Rack mount, for 12 cassette modules |
