Detail produk:
Syarat-syarat pembayaran & pengiriman:
|

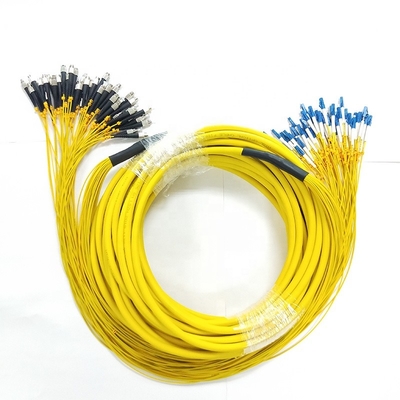

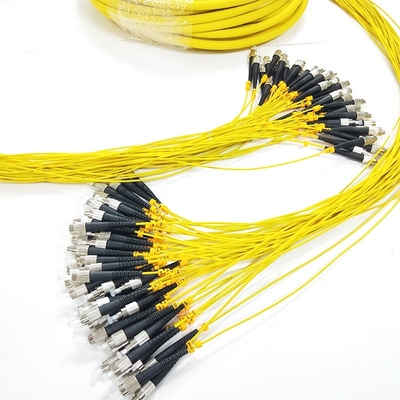

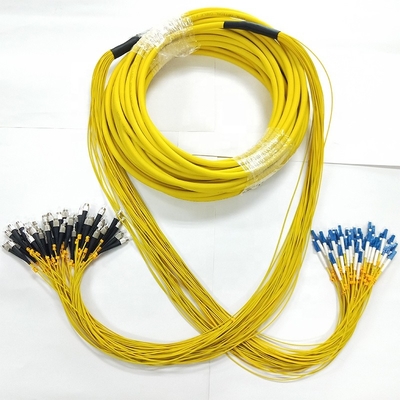

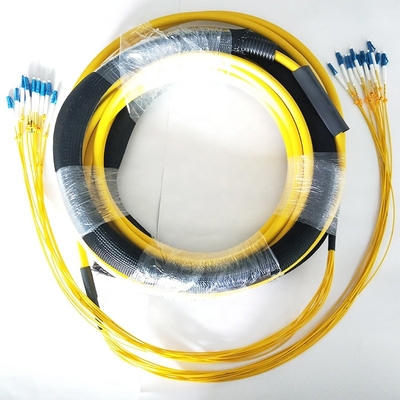

| Product Name:: | breakout patch cord | Cable color: | Yellow or customized |
|---|---|---|---|
| length: | 1M/2M/3M...customize | Insertion loss:: | ≤0.3dB |
| fiber cores:: | 24cores | Application:: | FTTH |
| Menyoroti: | FC-LC Fiber Optic Patch Cord,G652D Kabel Fiber Optic Patch Cord,Patch Cord Serat Optik 24 Inti |
||
Mendukung Parameter Pemesanan
1) Jenis konektor: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Bagian akhir ferrule: PC, UPC, APC
3) Tipe inti: Single-mode (SM: 9/125um), Multimode (MM: 50/125um atau 62.5/125um)
4) Jumlah kabel: Simplex, Duplex, 6 inti, 12 inti, 16 inti, 24 inti, 36 inti, 48 inti...
5) Diameter Kabel: φ3.0mm, φ2.0mm, φ0.9mm
6) Panjang Kabel: 1, 2, 3 meter atau disesuaikan
7) Jenis kabel: PVC, LSZH, OM3, OFNR, OFNP, Plenum,Armored
8) Patch cord/pigtail
Fitur
Kerugian penempatan rendah dan kehilangan pantulan belakang
Pertukaran yang baikKekandungan yang baik
Stabilitas suhu tinggi
CE, ROHS, FCC
Standar kualitas superior PC/UPC/APC polishing
Aplikasi
Sistem kabel, ODF
Sistem komunikasi serat optik
Transmisi data serat optik
Jaringan telekomunikasi
Sensor serat optik
Peralatan uji serat optik
Sistem komunikasi serat optik
FTTH, LAN, PON & CATV optik
Spesifikasi
| Artikel | Satuan | Kabel Fiber Patch LC/SC/FC/ST | ||||
| SM | MM | |||||
| Diameter Serat | UM | 9/125 | 65.5/125 | 50/125 | ||
| Pengelasan | PC | UPC | APC | PC | PC | |
| Kerugian Penempatan | dB | ≤ 0.2 | ≤ 0.15 | ≤ 0.2 | ≤ 0.1 | ≤ 0.1 |
| Kembali Kerugian | dB | ≥ 55 | ≥ 50 | ≥ 60 | ≥35dB | ≥35dB |
| Tes Masuk-Tarik | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.15 | ≤ 0.15 |
| Kemampuan bergantian | dB | ≤ 0.1 | ≤ 0.1 | ≤ 0.15 | ≤ 0.1 | ≤ 0.1 |
| Kisaran suhu | °C | -40 ~ +80 | ||||
| Ketahanan ((1/Perawatan) | ≥ 1000 | |||||
| Kekuatan tarik (N) | ≥ 90 (Φ3.0), ≥ 70 (Φ2.0), Φ0.9 | |||||
| Serat | 9/125um, 50/125um,62.5/125um,ect | |||||
| Diameter | 0.9mm 2,0mm, 3,0mm dll | |||||
| Inti | Simplex, duplex, 4 inti, 6 inti, 8 inti, 12 inti dll | |||||
