Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Length: | 1.5m or customized | Sertifikasi: | RoHS,ISO9001 |
|---|---|---|---|
| Cable color: | white,yellow,blue or customer request | Fiber type: | G652D/G657A1/G657A2 etc. |
| Connector: | SC | Ferrule End-face: | UPC |
| Cable diameter: | 0.9mm/2.0mm/3.0mm | Return loss: | >50dB |
| Menyoroti: | 1.5m SC UPC Serat optik Pigtail,1.5m UPC Serat optik Pigtail,1.5m SC Fiber Optic Pigtail |
||
| Parameter | Kehilangan sisipan (khas) | Kehilangan balik | Panjang gelombang operasi | Pertukaran | Getaran | Suhu operasi | Suhu penyimpanan | |
| satuan | dB | dB | nm | dB | dB | ℃ | ℃ | |
| SC | UPC | ≤0.3 | ≥50 | 1310, 1490,1550 | ≤0.2 | ≤0.2 | -40~75 | -45~85 |
| APC | ≤0.3 | ≥60 | ||||||
Informasi Pemesanan:
1. Jenis konektor: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4
2. Jenis Fiber: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)
3. Jumlah Kabel: Simplex atau Duplex, pigtail bundel, pigtail pita

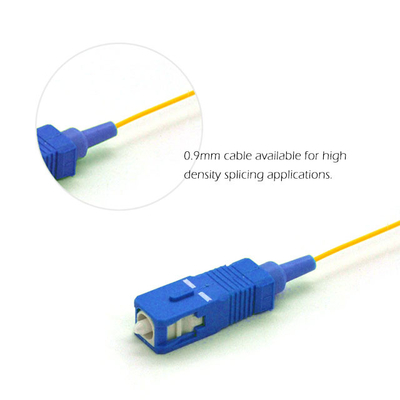

4. Diameter kabel: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm
5. Panjang kabel: 2 Meter, 5 Meter, 10 Meter, panjang yang disesuaikan
6. Warna kabel: Kuning untuk SM, Oranye untuk OM1 & OM2, Aqua untuk OM3, Violet untuk OM4, warna yang disesuaikan
7. Jaket luar: Kabel Riser PVC, Kabel Plenum PVC, kabel LSZH
