Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Cable color: | Colors | Connector: | SC,FC,LC |
|---|---|---|---|
| Fiber Count:: | 4/6/8/12 Fibers | Return loss: | >=50 dB |
| Jacket material: | PVC.LSZH | Operating temperature: | -40 to 75℃ |

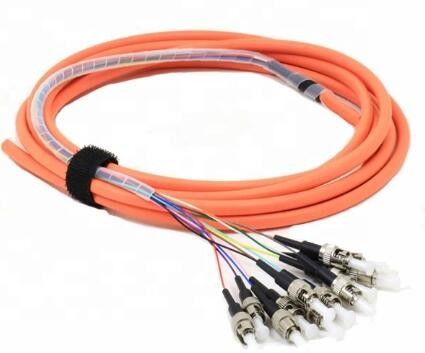

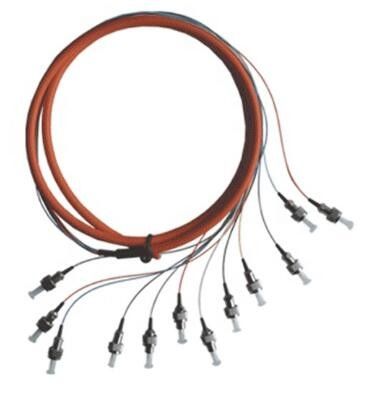

| Menyoroti: | OM3 FC UPC Pigtail,OM2 FC UPC Pigtail,OM1 FC UPC Pigtail |
||
Parameter
| Parameter | LC,SC,ST,FC | ||
| SM | MM | ||
| UPC | APC | UPC | |
| Panjang gelombang operasi (nm) | 1310/1550 | 850/1300 | |
| Kerugian Penempatan (dB) | ≤ 0.20 | ≤ 0.20 | ≤ 0.20 |
| Kehilangan Pengembalian ((dB) | ≥ 55 | ≥ 65 | ≥ 35 |
| Kerugian Repeatability (dB) | ≤ 0.1 | ||
| Kerugian Interchangeability (dB) | ≤ 0.20 | ||
| Ulangi Piug-Pull Times | ≥ 1000 | ||
| Kekuatan tarik ((N) | ≥ 100 | ||
| Kehilangan daya tahan (dB) | ≤ 0.20 | ||
| Suhu operasi ((°C) | -40°C ~ +75°C | ||
| Suhu penyimpanan ((°C) | -40°C~85°C | ||
