SC LC FC Fiber Optic Patch Cord 3.0mm LSZH PVC Pigtail

Gambar besar : SC LC FC Fiber Optic Patch Cord 3.0mm LSZH PVC Pigtail

Detail produk:

Place of Origin:	Shenzhen China
Nama merek:	CY COM
Sertifikasi:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	FC SC LC

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	10PCS
Harga:	negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

Kontak

Detil Deskripsi produk

Length:	1m or customized	Cable color:	White and Black
Connector:	SC,FC,LC	Insertion loss:	IL<0.2db
Return loss:	>50dB	Product name:	Outdoor and indoor Fiber optic Water proof pigtail FC SC LC patch cord
Menyoroti:	3.0mm LSZH PVC Pigtail , 3.0mm LC FC LSZH Pigtail , 3.0mm SC Fiber Pigtail

SC LC FC Fiber Optic Patch Cord 3.0mm LSZH PVC Pigtail

SC LC FC 2.0 3.0mm Fiber Optic Patch Cord LSZH PVC Pigtail Cable Waterproof Round Cable

Description:

FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC) , For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.

Features :

Low insertion loss and high return loss.

Soft ,flexiable ,easy to lay and splice, and with big capacity data transmission

Anti-UV charateristics meet the requirements of relevant standards
The mechanical charateristics meet the requirements of relevant standards

Good mechanical and enviromental characteristic

Application:

FTTH,LAN,PON & Optical CATV.

Telecom Net

Optical Fiber Communication System

Optical Fiber Test Equipment

Technical Parameter

Parameters	SC-SC	SCA-SCA
Working Temperature (°C)	-40 — +80
Insertion Loss (dB)	≤0.2	≤0.2
Return Loss( dB)	≥45	≥60
Tensile strength(N)	≥55	≥55
Durability(Times)	Exert a force of 1N for 1 hour at a distance of 0.5meter from the rear of connector.

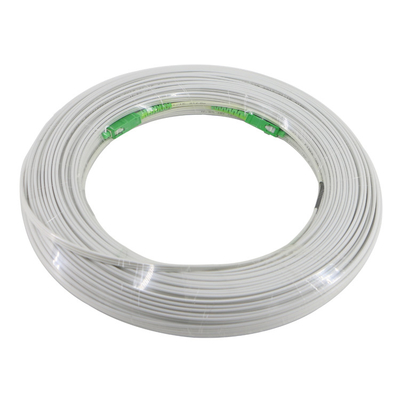

SC LC FC Fiber Optic Patch Cord 3.0mm LSZH PVC Pigtail 0

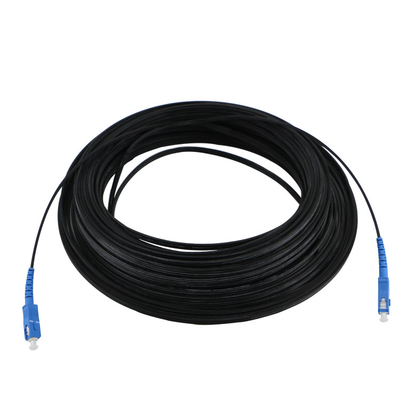

SC LC FC Fiber Optic Patch Cord 3.0mm LSZH PVC Pigtail 1
