12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail

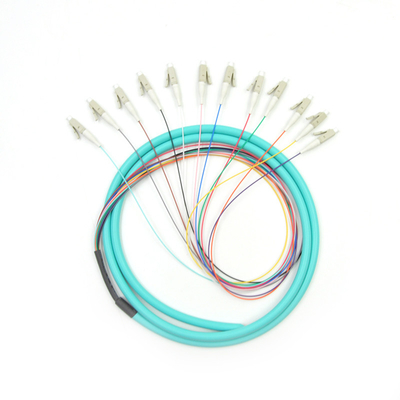

Gambar besar : 12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail

Detail produk:

Place of Origin:	Shenzhen China
Nama merek:	CY COM
Sertifikasi:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	LC SC FC ST MPO

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	10PCS
Harga:	negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

Kontak

Detil Deskripsi produk

Length:	1m or customized	Cable color:	Aqua
Connector:	SC,FC,LC	Cable diameter:	0.9mm
Jacket material:	OFNP,PVC.LSZH	Application:	FTTH FTTB FTTX Network
Menyoroti:	Multimode OM3 Fiber Optic Pigtail , 50/125 LC UPC Pigtail , 12 Strand OM3 Pigtail

12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail

12 Strand 50/125 OM3 Fiber Optic Pigtails LC/UPC Multimode Aqua color cable jacket

Description:

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.UNIFIBER fiber optic pigtails includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Features :

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss

Good in repeatability and exchangeability

High dense connection, easy for operation

Application:

Telecommunication

Computer networks

CATV networks Active device termination

Instrumentation

Parameters

Parameter:	Single mode	Multi mode
Insertion Loss	≤0.25dB	≤0.20dB
Return Loss	≥45 dB (PC) ≥50 dB (UPC) ≥60 dB (APC)	≥35 dB (PC) ≥45 dB (UPC)
Wavelength	1310nm,1550nm	850nm,1310nm
Repeatability	≤0.1
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Cord diameter	3.0mm,2.0mm,0.9mm
Connector Available	SC,FC,ST,LC,MU,MTRJ
Fiber Count	4,6,8,12,24fiber…

12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail 0
