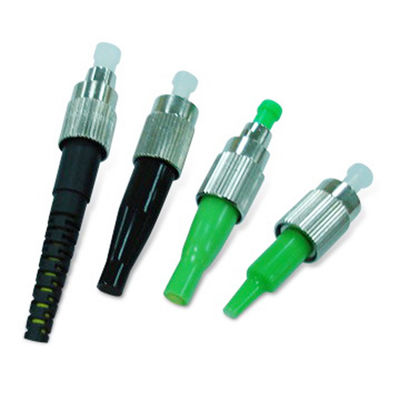

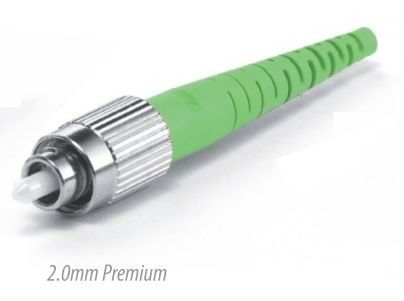

2.0mm FC Fiber Optic Connector Assembly

Gambar besar : 2.0mm FC Fiber Optic Connector Assembly

Detail produk:

Place of Origin:	Shenzhen , China
Nama merek:	CY COM
Sertifikasi:	ISO9001:2015 , ISO14001:2015, RoHS
Model Number:	FC

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	100pcs
Packaging Details:	PE bag
Delivery Time:	3-7 dasys
Payment Terms:	Western Union, T/T
Supply Ability:	10000pcs/day

Kontak

Detil Deskripsi produk

Ferrule End-face:	UPC, APC(8°）	Ferrule brand:	CCTC
Boot diameter:	0.9/2.0/3.0mm	Color:	Black / Red / Green / Customized
IL (Insertion Loss):	≤ 0.3dB	RL (Return Loss):	≥ 50dB
Menyoroti:	2.0mm Fiber Optic Connector Assembly , 2.0mm fc Optic Connector Assembly , 2.0mm Fiber Optic Connector Assembly

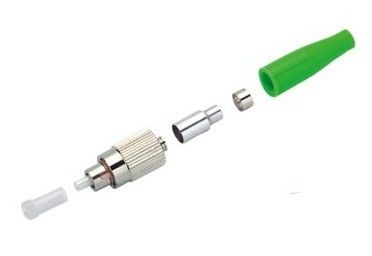

FC UPC/APC Fiber optic connector 0.9/2.0/3.0mm, pre-assembled

Features:

High return loss
Low insterion loss
Telcordia style boots
Compiance with TIA/IEA, IEC, RoHS

Applications:

CATV, Metro, LAN
Active device temination
Telecommunication networks
Industrial, medical, military

Ordering Information:

Ferrule End-face: PC, UPC, APC
Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
Core quantity: Simplex(SX), Duplex(DX)
Boot diameter: 0.9mm, 2.0mm, 3.0mm
Color: Blue,Yellow,Green

Specification

Item	UPC(Standard)	APC(Standard)
IL (Insertion Loss)	≤ 0.3dB	≤ 0.2dB
RL (Return Loss)	≥ 50dB	≥ 55dB
Operating Temperature	-40 to 75
Durability	≤ 0.1dB typical change, 500matings
Available Wavelength	SM=1310& 1550nm

2.0mm FC Fiber Optic Connector Assembly 0
