SC APC Fiber Optic Connector Assembly

Gambar besar : SC APC Fiber Optic Connector Assembly

Detail produk:

Place of Origin:	Shenzhen China
Nama merek:	CY COM
Sertifikasi:	ISO ROSH

Kontak

Detil Deskripsi produk

Product name:	Fast connectors	Color:	Green
Connector:	SC APC	Length:	55MM
Insertion cycle:	more than 1000 times	Application:	Telecom networks FTTX CATV
Menyoroti:	SC APC Fiber Optic Connector Assembly , FTTH Optical Connector Assembly , SC APC Fiber Connector Assembly

Green color Telecommunication FTTH SC APC fiber optical fast connectors

Description:
1). An fiber optic quick connector terminates the end of an optical fiber, and enables quicker connection and disconnection than
splicing.
2). The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light
due to reflection or misalignment of the fibers.

Feature:
1). Low insertion loss
2). High return loss (low amounts of reflection at the interface)
3). Ease of installation
4). Low cost
5). Reliability
6). Low environmental sensitivity
7). Ease of use

Product length

50mm ≤L≤60mm

Optical Characteristics

Category	Specification		Remarks
Aoolicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40~+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤0.3

Application:

1). CATV
2). Active device termination
3). Telecommunication networks
4). Metro
5). Local Area Networks (LANs)
6). Data processing networks
7). Test equipment
8). Premise installation
9). Wide Area Networks(WANs)

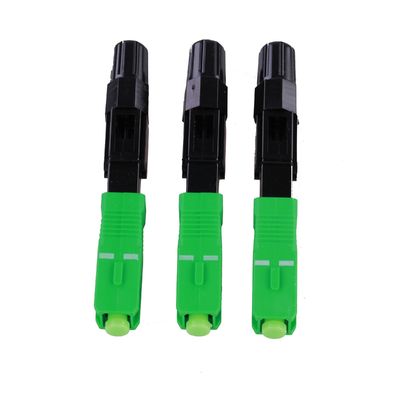

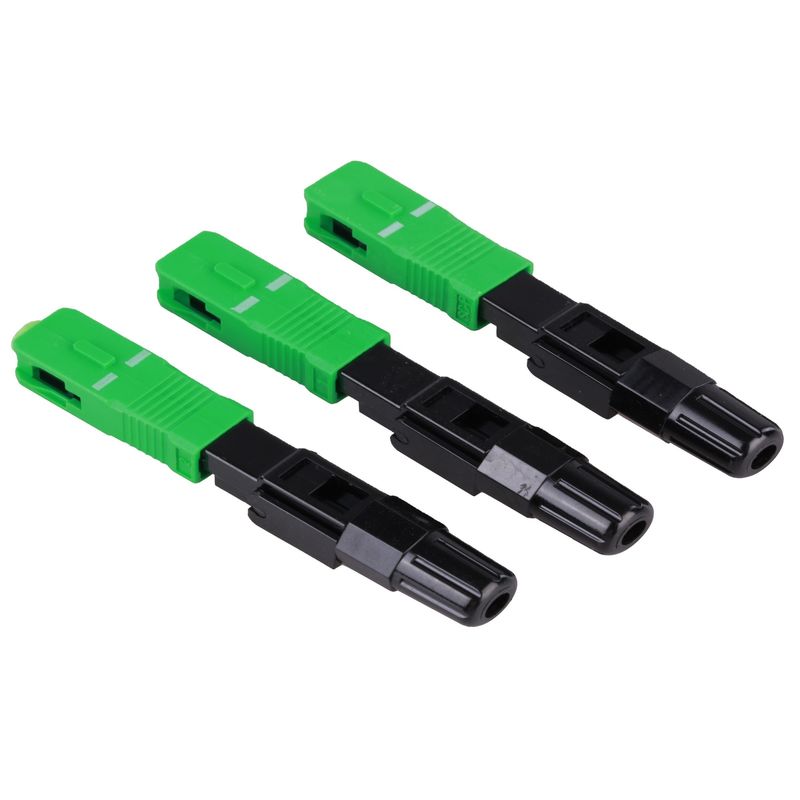

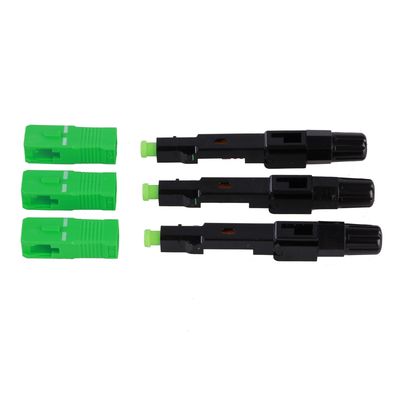

Product Picture
