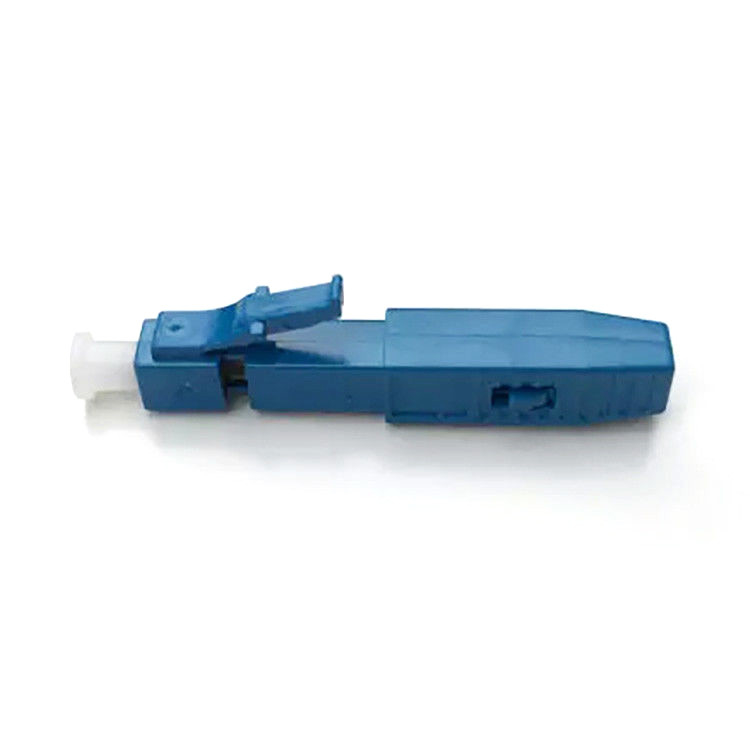

| Product name: | Fast Connector | Color: | Blue |
|---|---|---|---|
| Connector: | SC UPC | Length: | 55MM |
| Insertion cycle: | more than 1000 times | Application: | Telecom networks FTTX CATV |
| Menyoroti: | Penggabungan konektor cepat lc mode tunggal,CATV Single Mode konektor assembly,Penggabungan konektor SC UPC |
||
Panjang produk:50mm ≤L≤60mm
Karakteristik optik
| Spesifikasi Konektor Cepat | |||
| Mode | SM | MM | |
| Bahasa Polandia | UPC | APC | PC |
| Kerugian Penempatan |
ypical ≤0,2dB Maksimum ≤0,3dB |
≤ 0,25dB | |
| Kembali Kerugian | ≥50dB | ≥ 65dB | ≥35dB |
| Kemampuan bergantian | ≤0,2dB | ||
| Kemungkinan diulang | ≤ 0,1 dB | ||
| Daya tahan | ≤ 0,2dB (1000 kali kawin) | ||
| Kekuatan tarik | > 10kg | ||
| Suhu | ≤0,2dB (-40+85 bertahan 100 jam) | ||
| Kelembaban | ≤0,2dB (+25+65 93 R.H.100 jam) |
||
Aplikasi:
