Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Item: | Press-fit Elastic iron Adaptor | Color: | Green / Blue |
|---|---|---|---|
| Material of fit pin: | Plastic | Ferrule material: | Ceramic |
| Cap color: | Black / Blue / Green / Customiaed | Application: | PCB circuit board |
| Type: | APC / UPC | Test data: | IL≤ 0.2dB, RL≥60dB |
| Menyoroti: | APC UPC Fiber Optic Coupler,SC UPC Fiber Optic Coupler,0.2dB Fiber Optic Coupler |
||

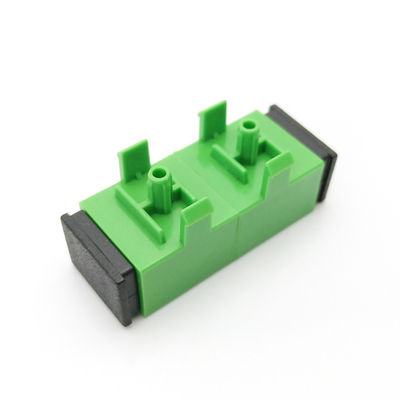

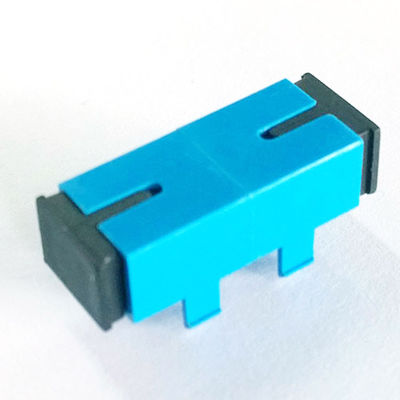

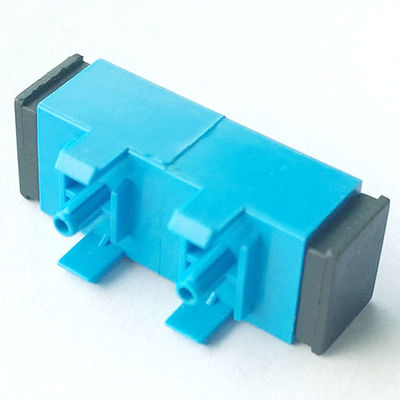

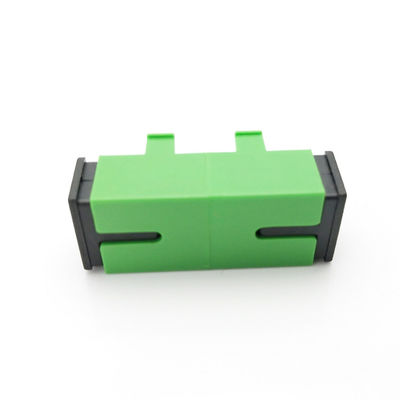

0.2dB SC APC UPC Fiber Optic Coupler For PCB Circuit Board
SC Fiber optic adapters with Press-fit Elastic iron ,Plastic Fit pin fiber optic coupler used For PCB circuit board
Description:
Optical fiber adapter is mainly used to connect optical fiber or optical cable to each other when installing optical fiber system to realize optical link connection; The SC fiber optic adapter is a latch type, does not need to be rotated, and is easy to insert and remove. The insertion loss fluctuation is small, and the compressive strength is high. The installation density is high. The use of precision Ceramic sleeve to ensure long-term stable mechanical and optical performance;
Features:
Good compatibility
High reliability & stability
PC,APC,UPC optional
Ceramic or Bronze Sleeve
Used For PCB circuit board
Low insertion loss, high return loss
High precision of mechanical dimensions
Application:
1. CATV system
2. Optical fiber communication systems
3. Optical fiber data transmission
4. Building network access
5. Cabling system, ODF
6. FTTX and FTTH applications
7. Test equipment
Spare parts materials:
| Number | Part | Material | ROSH | Flammability rating |
| 1 | Sleeve | Zirconium dioxide | Yes | Fireproof |
| 2 | Inner | PBT | Yes | V-0 |
| 3 | Housing | PC | Yes | V-0 |
| 4 | Dust cap | ABS | Yes | V-0 |
Appearance control:
The appearance of the adapter is smooth, clean, free of oil, burrs, and scratches;
The adapter has bright appearance and good consistency;
The components of the adapter are combined smoothly, and the plug and adapter can be inserted and pulled out smoothly, easily, and the clips are strong
Technical Specs:
| Project | Index | |
| Reference standard | IEC61754-4,IEC61300-3-33 YD/T 1272.3-2005 | |
| Insertion loss | ≤0.3dB | |
| Low temperature | Temperature: -40°C Test time: 168H Temperature change rate: 1°C /min |
≤0.2dB |
| High temperature | Temperature: 85°C Test time: 168H Temperature change rate: 1°C /min |
≤0.2dB |
| Hot and humid | Temperature: 40°C Humidity: 90%~95% Time: 168H Temperature change rate: 1°C /min |
≤0.2dB |
| vibration | Vibration direction: X, Y, Z Vibration time: 2 hours/direction Vibration amplitude: 0.75 mm Vibration frequency: 10~ 55 Hz |
≤0.2dB |
| fall | Height: 1M Cable length: 2.25M Number of impacts: 5 |
≤0.2dB |
| Temperature cycle | Temperature: -40°C ~85°C Duration of extreme temperature: 0.5H Temperature change rate: 1°C /min Number of cycles: 21 |
≤0.2dB |
| Repeatability | Insert refolding: 10 | ≤0.2dB |
| Tensile strength of locking mechanism | 68.6N/10 minutes | ≤0.2dB |
Drawing:
