| Type: | Racks & Enclosure | Seals: | Mechanical seal |
|---|---|---|---|
| Ports diameter(mm): | 7~23mm | No. of Fiber: | 8 |
| Water proof grade: | IP67 | Dimension (mm): | 445*215*130 |
| Max capacity: | 12-288 core | Material: | ABS+PC |
| Menyoroti: | 23mm 144 core Fiber Optic Enclosure,23mm 144 core Fiber Enclosure,23mm 144 core Optical Enclosure |
||

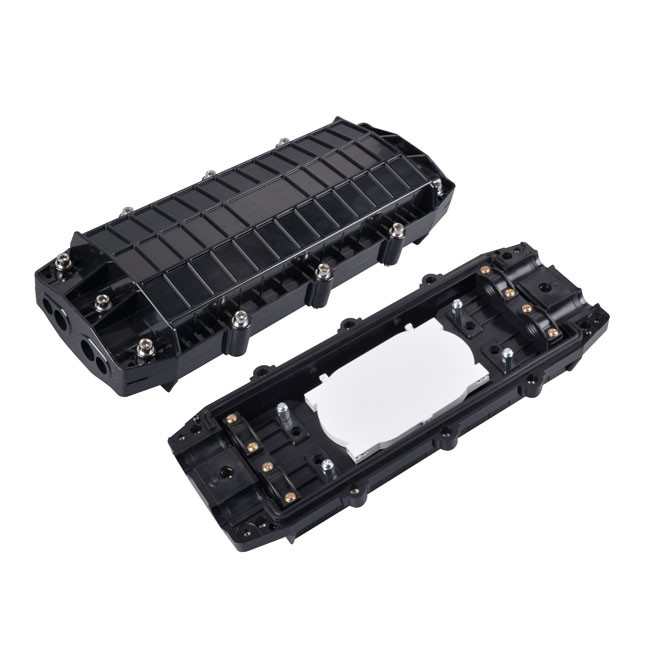

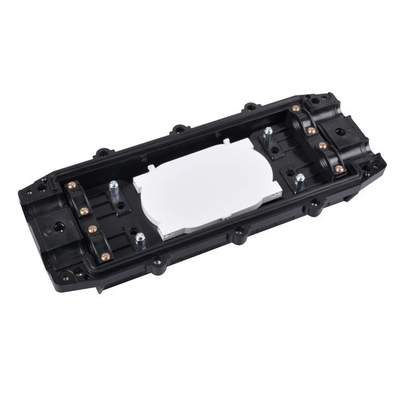

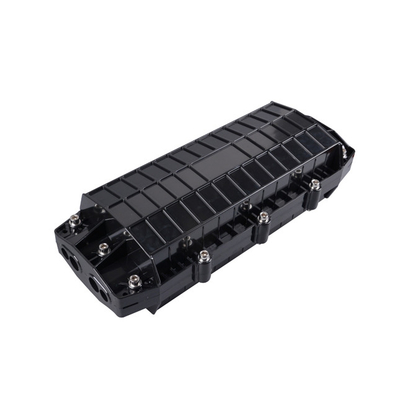

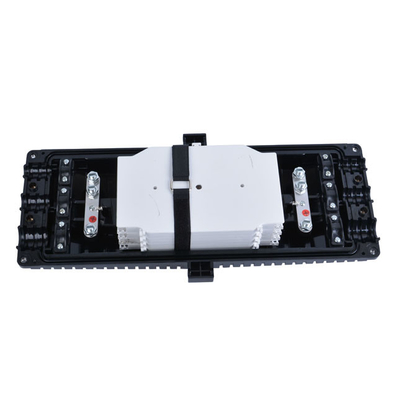

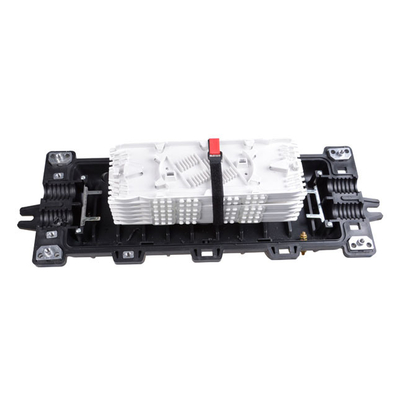

Horizontal/inline fiber optic cable junction box closure 12 24 48 36 72 96 144 core
DESCRIPTION
Horizontal fiber optic splice closure can be used in aerial,duct,and direct buried application,They are made of the high quality material and with the mechanical sealing structure filled with the material,and can be reopened and reused without changing sealing material and tools.
APPLICATION
FEATURES
1: High-strength engineering plastic shell
2: High mechanical performance
3: Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
4: Great aging resistant ability
5: Does not require special tools, easy to install and open the duplicate.
6: Excellent sealing performance
Specification
|
Product Name
|
Fiber optic splice closure
|
|
Type
|
Horizontal
|
|
Cores
|
12-288cores
|
|
Seals
|
Mechanical seal
|
|
Material
|
ABS+PC
|
|
Cable out of the tube configuration
|
Up to four out of the tube fiber optic cable
|
