transceiver module QSFP-DD 400GE SR8 100 m OM4 & 70 m OM3

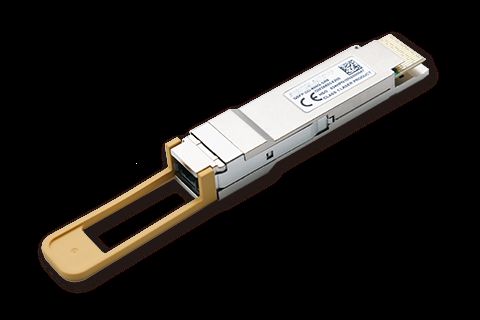

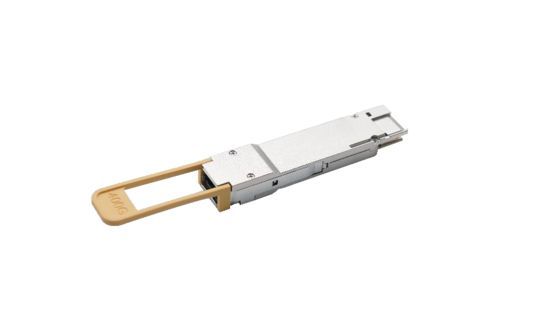

Gambar besar : transceiver module QSFP-DD 400GE SR8 100 m OM4 & 70 m OM3

Detail produk:

Tempat asal:	Shenzhen, Cina
Nama merek:	CY COM
Sertifikasi:	ISO9001:2015, ISO14001:2015, ROSH
Nomor model:	QSFP-DD 400G SR8

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10 pcs
Kemasan rincian:	kotak plastik dan kotak karton
Waktu pengiriman:	5-8 hari
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	50K/bulan

Kontak

Detil Deskripsi produk

Faktor bentuk::	QSFP - DD	Transceiver::	SR8
Antarmuka::	Mpo	Media::	MMF
Jangkauan/km::	0,1 km	Konsumsi Daya/W::	10
Suhu/℃::	0 SAMPAI 70
Menyoroti:	QSFP-DD 400GE SR8 transceiver module , 400GE SR8 fiber optic transceiver , QSFP-DD transceiver with OM4 OM3 compatibility

QSFP-DD 400GE SR8 Transceiver Module - 100m OM4 & 70m OM3

The OM3680SX200 is a parallel 400GE Quad Small Form Factor Pluggable Double Density (QSFP-DD) SR8 optical module designed for optical communication applications. The module uses a 4-level pulse amplitude modulation (PAM4) format and provides point-to-point 400 Gigabit Ethernet links over eight pairs of multimode fiber.

Function Descriptions

The optical module provides:

Reach of up to 100 m for OM4 (MMF)
Reach of up to 70 m for OM3 (MMF)

Compliant with QSFP-DD MSA standard, IEEE 802.3cm 400GBASE-SR8 standard, and IEEE 802.3bs 400GAUI-8 standard. Digital diagnostics functions are available via the I2C interface as specified by the QSFP-DD MSA.

Figure 1-1: Transceiver block diagram

Pin Descriptions

The QSFP-DD SR8 module edge connector consists of a single paddle card with 38 pads on the top and 38 pads on the bottom for a total of 76 pads. The pads are defined to accommodate insertion of a QSFP module into a QSFP-DD receptacle.
