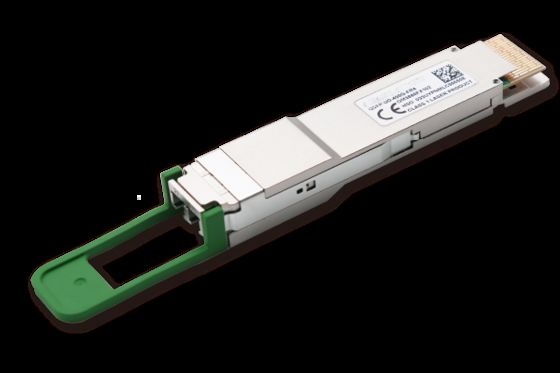

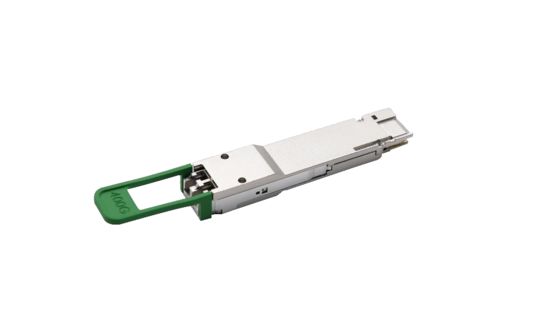

transceiver module QSFP-DD 400GE FR4 2 km of 4 CWDM lanes MUX/DEMUX design

Gambar besar : transceiver module QSFP-DD 400GE FR4 2 km of 4 CWDM lanes MUX/DEMUX design

Detail produk:

Tempat asal:	Shenzhen, Cina
Nama merek:	CY COM
Sertifikasi:	ISO9001:2015, ISO14001:2015, ROSH
Nomor model:	QSFP-DD 400GE FR4

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10 pcs
Kemasan rincian:	kotak plastik dan kotak karton
Waktu pengiriman:	5-8 hari
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	50K/bulan

Kontak

Detil Deskripsi produk

Faktor bentuk::	QSFP - DD	Transceiver::	FR4
Antarmuka::	LC	Media::	Smf
Jangkauan/km::	2 km	Konsumsi Daya/W::	12
Suhu/℃::	0 SAMPAI 70
Menyoroti:	QSFP-DD 400GE FR4 transceiver , 2 km fiber optic transceiver , CWDM MUX/DEMUX transceiver module

QSFP-DD 400GE FR4 Transceiver Module - 2 km, 4 CWDM Lanes MUX/DEMUX Design

The OM3660FX102 is a transceiver module designed for 2 km optical communication applications, compliant with the 100G Lambda MSA standard. This module converts 8-channel 53.125 Gbps electrical data to 4-channel 106.25 Gbps optical signals, multiplexing them into a single channel for 425 Gbps optical transmission. On the receiver side, it optically de-multiplexes a 425 Gbps input into 4-channel signals and converts them to 8-channel output electrical data.

Engineered to withstand harsh external operating conditions including temperature extremes, humidity, and EMI interference, this module offers high functionality and feature integration accessible via the I2C interface.

Transceiver Block Diagram
