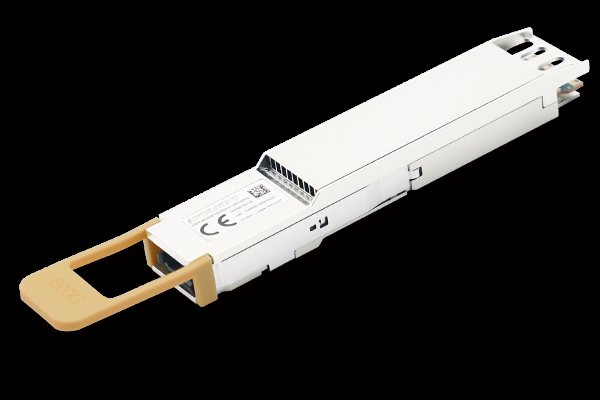

transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3

transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3

Gambar besar :  transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3

Detail produk:
Tempat asal: Shenzhen, Cina
Nama merek: CY COM
Sertifikasi: ISO9001:2015, ISO14001:2015, ROSH
Nomor model: OSFP 800GE SR8
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 pcs
Kemasan rincian: kotak plastik dan kotak karton
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 50K/bulan
Kontak
Detil Deskripsi produk
Faktor bentuk:: OSFP Transceiver:: SR8
Antarmuka:: Mpo Media:: MMF
Jangkauan/km:: 0,1 km Konsumsi Daya/W:: 15.5
Suhu/℃:: 0 SAMPAI 70
Menyoroti:

OSFP 800GE SR8 transceiver module

,

800GE SR8 fiber optic transceiver

,

OSFP transceiver module with OM4 OM3

Transceiver Module OSFP 800GE SR8 100 m OM4 & 60 m OM3
The OM3887SX100 is a parallel 800G Octal Small Form-Factor Pluggable (OSFP) SR8 optical module designed for optical communication applications. The optical module uses a 4-level pulse amplitude modulation (PAM4) format. The optical module provides point-to-point 800 Gigabit Ethernet links over eight pairs of multimode fiber, with a reach of up to 100 m for OM4 (MMF) and 60 m for OM3 (MMF).
Function Descriptions
It is compliant with OSFP MSA standard and IEEE 802.3df 800GBASE-SR8 standard and IEEE 802.3ck 800GAUI-8 standard. Digital diagnostics functions are available via the I2C interface, as specified by the OSFP MSA.
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3 0
Figure 2-1 Transceiver block diagram
Mechanical Specifications
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3 1
Figure 3-1 OM3887SX100 mechanical dimensions
Features
  • OSFP MSA rev5.0 compliant
  • OSFP CMIS 5.2 Management interface compliant
  • IEEE 802.3df 800GBASE-SR8 standard compliant
  • IEEE 802.3ck 800GAUI-8 standard compliant
  • OIF-CEI-112G-VSR-PAM4 standard compliant
  • Digital diagnostic functions
  • 8 channels full-duplex transceiver module
  • 850 Gbps aggregate bit rate
  • Maximum link length of 60 m OM3, 100m OM4 with FEC
  • Single MPO-16/APC receptacle
  • Maximum power dissipation ≤ 15.5 W
  • Operating case temperature range 0°C to 70°C
  • Single 3.3 V power supply
  • RoHS 2 compliant
Applications
  • 800G Ethernet
  • Data center network
transceiver module OSFP 800GE SR8 100 m OM4 & 60 m OM3 2
