Fixd Type 24cores Rack Mounted Terminal Box

Fixd Type 24cores Rack Mounted Terminal Box
Fixd Type 24cores Rack Mounted Terminal Box

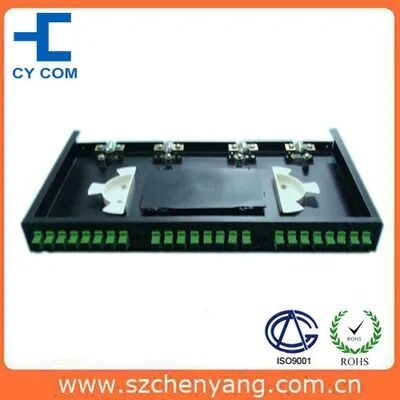

Gambar besar :  Fixd Type 24cores Rack Mounted Terminal Box

Detail produk:
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 20
Kontak
Detil Deskripsi produk
Nomor Model.: CTB-GPZ/JJ-SC24 Jenis: Kotak Distribusi Serat Optik
Perangkat kabel: Kotak Terminal Serat Optik Spesifikasi: SGS, ROHS
Asal: SHENZHEN CINA
Menyoroti:

24-core rack mounted terminal box

,

MTP MPO terminal box

,

rack mounted fiber optic box

Fixd Type 24cores Rack Mounted Terminal Box
Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.
Usage and Properties
  • Suitable for the protective connection between cables and pigtails
  • Suitable for the connection between optical cables and optical communication device
  • Unique structure, easy installation, for indoor use
Product Specifications
  • Capacity: 12, 24, 32, 48, 64, 72, 96 splices
  • Adapters installed: FC, ST, LC, SC adapter etc.
  • Mounting: Rack Mount, Wall Mount
  • Suitable for: Ribbon and bunchy fiber cable
Product Components
  • Cover: Easily opened for installation with outlet device for fiber metal high voltage protective earthing
  • Inner Components:
    • Bracket: Supporting the inner structure
    • Fiber Optic Splice Tray: Stores fiber connectors with protective components and spare fibers (≥1.6m length)
    • Fixing Device: For fixation of fiber protective tubes and pigtails
Material Specifications
  • All components made of excellent anti-corrosion materials or static plastic sprayed
  • Heat shrink protective sleeves melting temperature ≥120°C, intenerate temperature >90°C
  • Operating temperature range: -25°C to 40°C
  • All materials are non-toxic and non-corrosive
Features and Advantages
  • Made of cold-rolling steel with static spreading-plastic
  • Compact dimensions and easy operation
  • Convenient rack mounting system
  • Stackable splice trays with flexible turning
  • Unique structure with adequate operation space
  • Adjustable clamp seal ring for different cable sizes
  • Excellent seal performance for indoor use
Technical Parameters
Parameter Value
Environmental temperature -25°C to 55°C
Relative humidity ≤85% (at ≤30°C)
Atmosphere pressure 70~106Kpa
Insulating resistance ≥2×10⁴ MΩ /500VDC
Voltage-resistance strength 15kv/DC/1min (non-puncture, no arc-over)
