100m G657A One Core FTTH SM SX Optical Fiber Patch Cord

Gambar besar : 100m G657A One Core FTTH SM SX Optical Fiber Patch Cord

Detail produk:

Place of Origin:	Shenzhen
Nama merek:	CY COM
Sertifikasi:	ISO ROHS

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	10
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

Kontak

Detil Deskripsi produk

Product name:	Fiber patch cord	Cable color:	Black or customized
length:	1m,2m,3m 100m or customized	Cable Dimension:	0.9mm, 2.0mm,3.0mm
Connector:	SC/APC	Model:	Single Model
wavelength::	1310nm or 1550nm	Cable type:	G652D, G657A1,G657A,G657B3
Menyoroti:	FTTH SM SX optical fiber patch cord , G657A one core fiber patch cord , 100m G657A fiber patch cord

100m G657A One Core FTTH SM SX Optical Fiber Patch Cord

FTTH Aerial Self-supporting Drop cable, FRP Strength Member, LSZH Jacket

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ).

The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket.

Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Characteristics

Self-supporting structure, light weight, easy to install
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Steel wire as additional strength member has high tensile strength
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Durable and flame retardant LSZH sheath, low smoke zero halogen

Application

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
High performance optical network operation

Optical performance:

Test Item		Test Condition	Value(dB)
			UPC	APC
Optical Performance	Insertion Loss	1310nm LED light source	<0.3	<0.3
	Return Loss	1310nm LED light source	>50	>60
Environmental Performance (Max. Insertion Loss change)	High temperature	+85°C168 hours	<0.2
	Temperature Cycle	-40-+75°C, 21 Cycles 168 hours	<0.2
	Humidity Aging	+75°C, 95%R.H,168 hours	<0.2
	Humidity/Condensation Cycling	-10°C-+65°C, 90%~100%RH, 14 cycles 168 hours	<0.2
Mechanical Performance ( Max. Insertion Loss change)	Vibration	10-55Hz, 1.5mm(p-p)	<0.2
	Flex	0.9kg,-90o~+90o repeat for 100 cycles	<0.2
	Torsion	1.35kg,90o~+90o ,10times	<0.2
	Withstand tensile	90N,10min	<0.2
	Drop	H=1.5M,Total of 8 drops	<0.2
	Exchangeability	Randomly	<0.2
	Durability	500 times	<0.2

Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

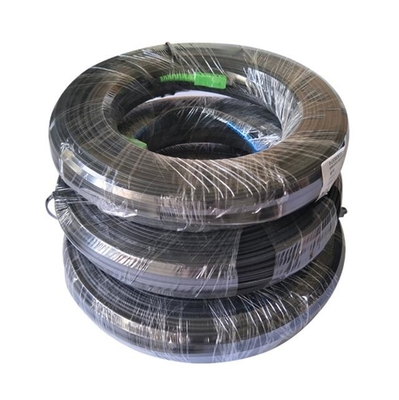

Product picture
