Detail produk:
Syarat-syarat pembayaran & pengiriman:
|

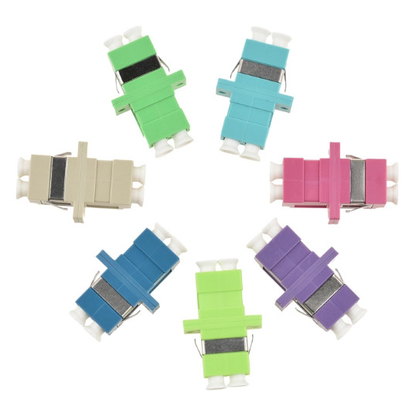

| Item: | LC-MM-DX SC type Adapter | Color: | Beige / Aqua / Purple / Violet |
|---|---|---|---|
| Structure: | Flange or Flangeless | Test: | 100% |
| Materials: | FBT+PC | Ferrule material: | Ceramic |
| Cap color: | White | Fiber type: | OM1 OM2 |
| Menyoroti: | OM2 Fiber Optic Coupler,OM1 Fiber Optic Coupler,Multimode LC pC Coupler |
||

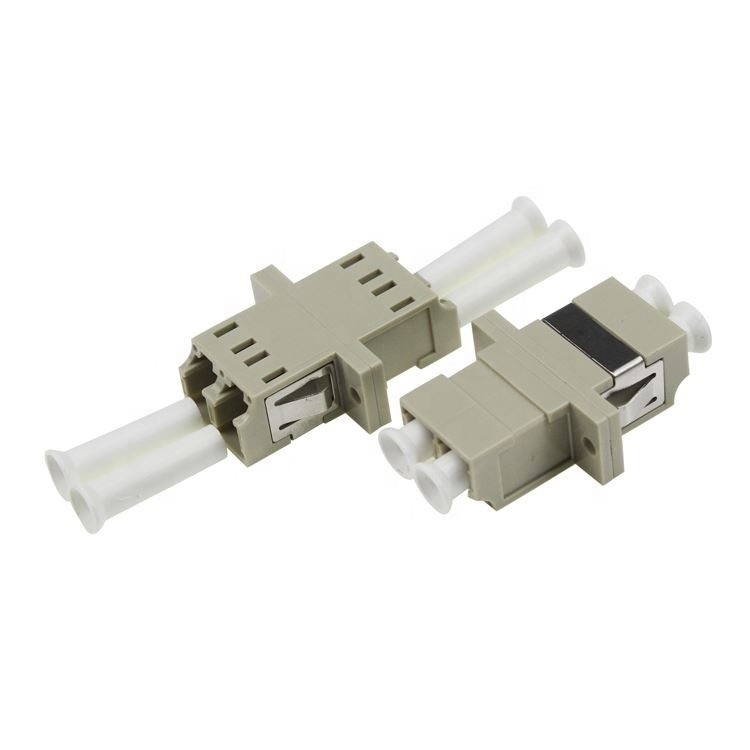

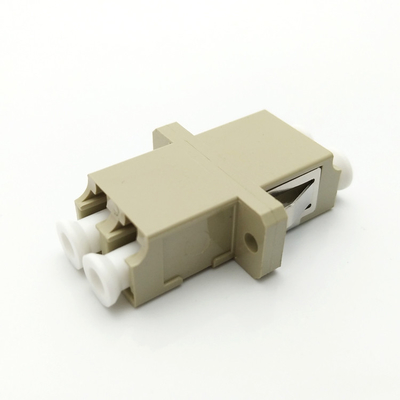

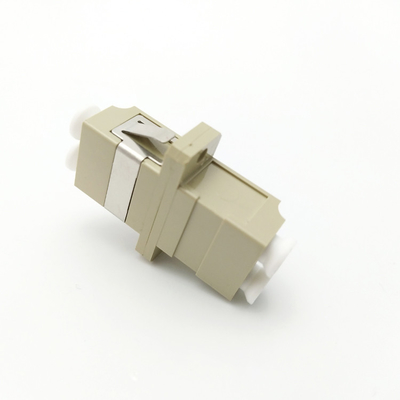

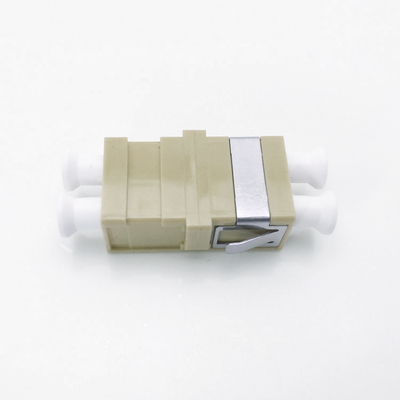

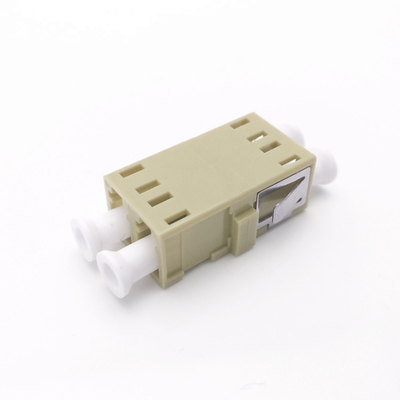

Multimode Beige LC PC Duplex OM1 OM2 Fiber Optic Coupler
Mutilmode OM1 OM2 Beige LC PC Duplex Fiber Optical Coupler Plastic SC Type Adapter
Description:
Features:
Excellent Temperature stability
Low insertion loss ,high return loss
Good repeatability and exchangeability
Excellent mechanical endurance
Customer defined specifications
Compliant with Telcordia,TIA/EIA and IEC
Application:
Optical Fiber Communications,Video,LAN, CATV Systems
Optical Network Equipments,optical Test Equipments
Module Pigtails,Multi media,Premise
Active device termination installations
| Insertion Loss | ≤0.2dB | |
| Return Loss | PC≥45dB;UPC≥50dB;APC≥60dB | ≥30dB |
| Durability | ≤0.2dB,after 1000times | |
| Operation Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |
Pictures and Drawing(The Unit is mm):
